CTP
Computer To Plate
Computer-to-Plate (CTP) is a key component of modern prepress workflows. For over two decades, we at DotLine have been developing and manufacturing our own CTP systems – with a focus on reliability,
ease of maintenance, and seamless integration into existing production environments.
Our systems are primarily used in newspaper and publishing printing but are also suitable for other applications with high throughput and tight deadlines. Depending on requirements, we offer various levels
of automation – from compact entry-level devices to fully automated lines with pallet loaders, online integration, and remote monitoring.
_
All systems can be integrated into existing workflows and controlled online. Through our remote service concept with remote maintenance and live monitoring, we minimize downtime and ensure reliable operation
even under high production loads.
_

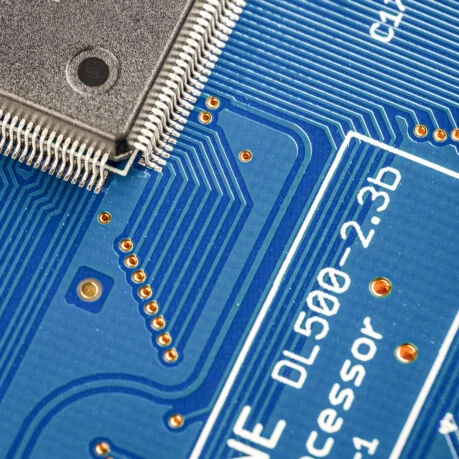

Thanks to complete in-house development of mechanics, optics, electronics, and software, we are independent of third-party suppliers and can support, adapt, and expand our systems reliably over many years.
_

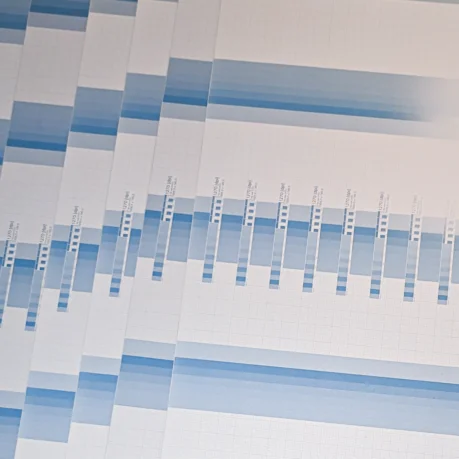

Our CTP systems handle up to 400 plates per hour at variable resolutions up to 1270 dpi. They support multiple plate formats and are compatible with all standard violet polymer plates from leading manufacturers.
Automatic loading is done via cassette or pallet systems, offering direct access to up to 6000 plates. Format and cassette type changes take less than two minutes.
_
Scalability
The VMAX is available in various configurations – from semi-automated loading to fully automated systems with one or two autoloaders. Thanks to the flexible cassette system, different plate types and
formats can be switched during operation. The pallet loader variant provides access to up to 6000 plates without reloading, minimizing manual intervention.
_

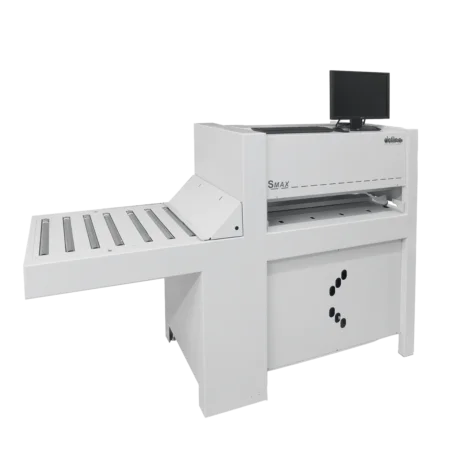

SMAX
The SMAX is our space-saving CTP solution for smaller production volumes or as a reliable backup system. Despite its compact form, it offers a full range of CTP functionality, including automation options
and compatibility with violet polymer plates. Whether as a main unit in small operations or as part of a redundant setup, the SMAX delivers dependable performance in limited space.
_

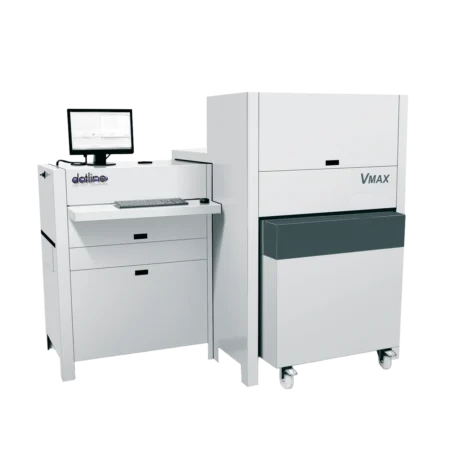

VMAX
The VMAX is our most powerful CTP system, designed for high-throughput prepress environments. With up to 400 plates per hour, variable resolution up to 1270 dpi, and the ability to handle multiple plate
formats automatically, the VMAX is ideal for time-critical, large-scale production workflows.
_
SMAX: Specs
· Throughput: up to 100 plates/hour
· Resolution: variable up to 1270 dpi
Automation options:
· Manual or semi-automated for small runs
· Optional autoloader for fully automated loading
· Compact footprint: only 2300 mm inline length (including autoloader)
· Integration: full compatibility with workflow, processor, and punch/bender systems
_
VMAX: Specs
· Throughput: up to 400 plates/hour
· Resolution: variable up to 1270 dpi
Loading systems:
· Single loader (up to 3000 plates)
· Double loader (up to 6000 plates, two formats in parallel)
· Mixed operation with pallet and standard cassettes
· Automation: full online integration with workflow, processor, and punch/bender systems
· Footprint: compact design – only 2300 mm inline length (single loader version)
_

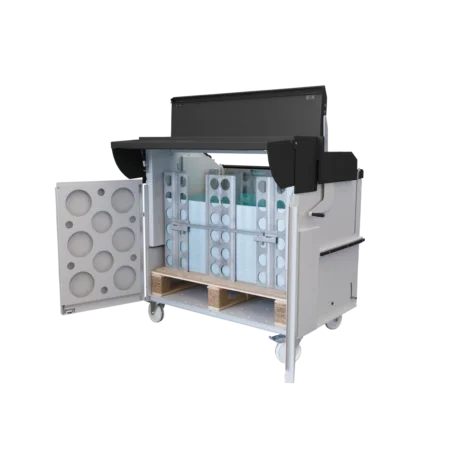

Palette-loader
For the VMAX system, a fully automated pallet loader is available to significantly extend operating autonomy. With up to 3000 plates per autoloader – or 6000 plates in double-loader configuration – the pallet loader minimizes manual intervention and enables continuous operation with minimal downtime. The daylight-compatible cassette system allows for safe plate handling and cassette replacement in under two minutes, outside the machine.
Download: Flyer VMAX
Download: Flyer SMAX
